Creating a Sweep Surface by Selecting the Side of the Motion

In this task you will use the Rake Sweep command to create a surface by sweeping one contour along two drive contours.



In this case there two possible sides for the motion. You can accomplish this task by loading file "RakeSweep.e3"

1	Start the Rake Sweep command.

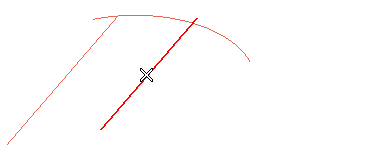

2	Select the first drive curves and end selection by right-clicking and selecting Continue.
3	In the Second Drives drop-down list, select Curves.

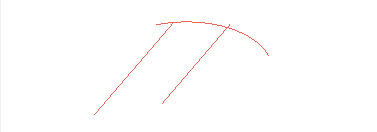

4	Click on the curve on the left and end selection by right-clicking and selecting Continue.
5	In the Constraint drop-down list select G0-G0.

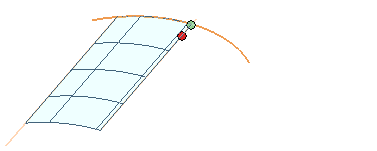

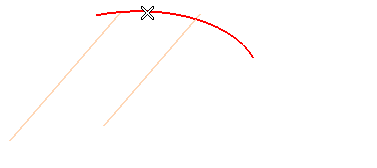

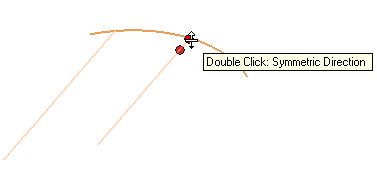

6	Select the section curve: The handle shows up: Then you can see the preview of the resulting surface.
