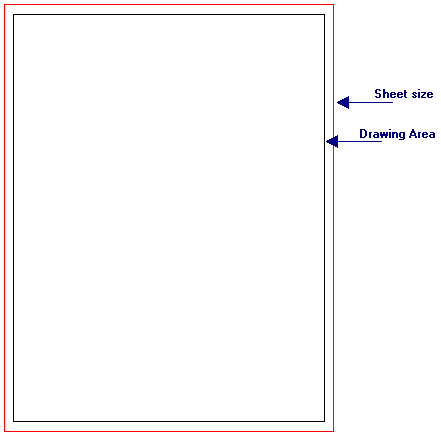

A Drawing Frame is the graphical representation of the size of the sheet and, optionally, of the area that will actually be occupied by the drawing.
A frame can be added to the drawing — together with a Title Block — using the Drawing Frame and Title Block command.
A complete set of standard Drawing Frames comes with the think3 application standard installation. They are stored as ".e2" drawing files located in the files\drwFrames subfolder of the application installation folder. The following is the list of the available frames and of the corresponding files:
| FORMAT | LANDSCAPE | PORTRAIT |
| A | a_landscape.e2 | a_portrait.e2 |
| B | b_landscape.e2 | b_portrait.e2 |
| C | c_landscape.e2 | c_portrait.e2 |
| D | d_landscape.e2 | d_portrait.e2 |
| E | e_landscape.e2 | e_portrait.e2 |
| Architectural C | ac_landscape.e2 | ac_portrait.e2 |
| Architectural D | ad_landscape.e2 | ad_portrait.e2 |
| Architectural E | ae_landscape.e2 | ae_portrait.e2 |
| A0 | a0_landscape.e2 | a0_portrait.e2 |
| A1 | a1_landscape.e2 | a1_portrait.e2 |
| A2 | a2_landscape.e2 | a2_portrait.e2 |
| A3 | a3_landscape.e2 | a3_portrait.e2 |
| A4 | a4_landscape.e2 | a4_portrait.e2 |
| Free | Free_landscape.e2 | Free_portrait.e2 |
| Do not delete the above files!
Do not delete or rename the above files and do not move them to any other folder: if you do, you may not be able to position a standard frame in the drawing any longer. |
