In this task you will use the Welding Section command to add the section of a Fillet weld to a drawing. To follow this step-by-step example, load the Weld_Fillet.e2 drawing.

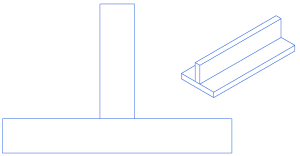

Before you start, check that the welding standard set in the Organize Weldings dialog box suits your needs, then familiarize with the scenario: you have two parts to weld together with a Fillet weld:
| 1 | Start the Welding Section command. |
| 2 | From the Basic Symbol drop-down list, select Fillet. |
| 3 | From the Dimensioning mode drop-down list in Section Dimensioning, select Side. |
| 4 | The program prompt is 2 Curves. Select the two sides to be welded together:
|
| 5 | Enter 5 as side dimension of the weld, then click the to create the weld. |
