Integrating the Adaptive Measure mechanism in think3 application commands

You can use the Adaptive Measure (AM) mechanism for any command that uses mini-dialogs with a numerical input. You can enable the AM mechanism through the context menu on the Graphic Area and in the mini dialog box.

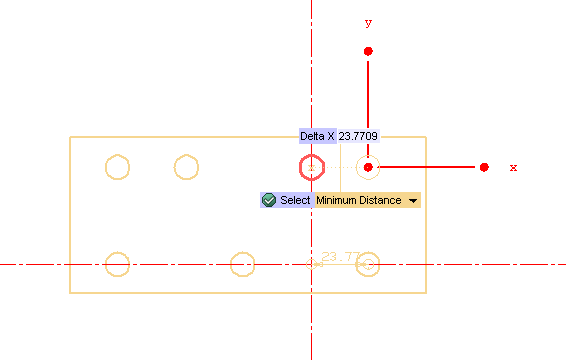

Adaptive Measure mechanism in 2D commands

You can use the AM mechanism in 2D commands.

Adaptive Measure mechanism in Transformation commands

You can use the AM mechanism for Transformation commands like Move/Copy, Scale and Multistretch commands.

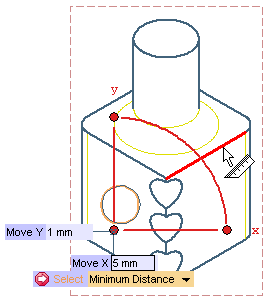

• Usage of AM in Move/Copy command.

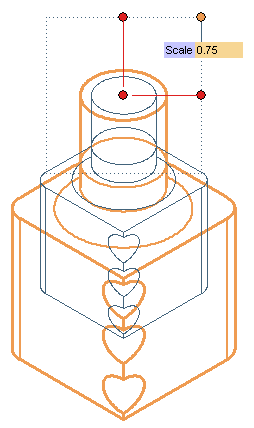

• Usage of AM in Scale command.




• Usage of AM in Multistretch command.

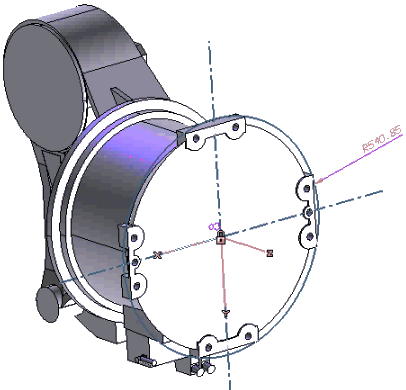

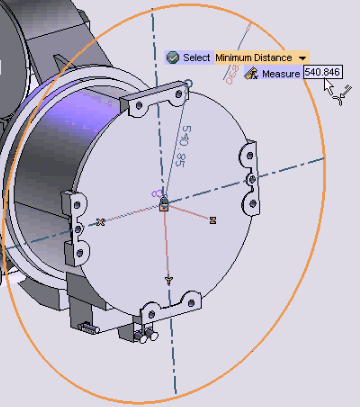

Adaptive Measure mechanism in Smart Dimension command

You can use the AM mechanism in Smart Dimension command inside profile.

Adaptive Measure mechanism in Curve and Surface commands

You can use the AM mechanism in curve and surface commands.

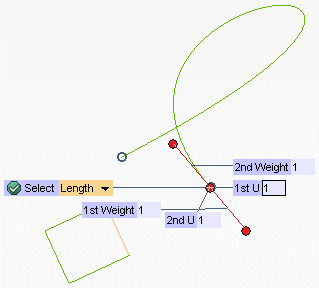

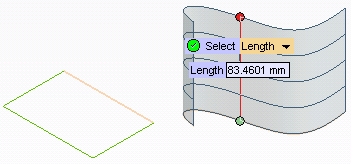

AM mechanism in curves	AM mechanism in surfaces

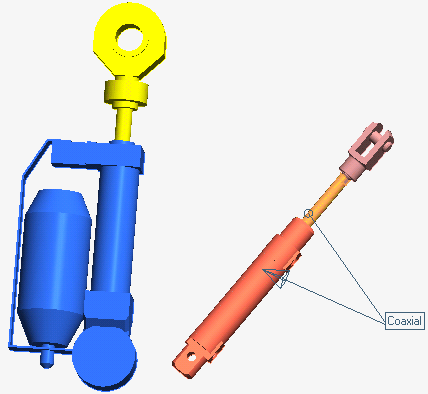

Adaptive Measure mechanism in Mating command

You can use AM mechanism in Mating command.
