Saving a STEP file

To convert from the think3 format to STEP — do the following:

1. Select Save or Save As.

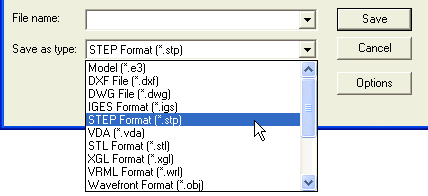

2. In the file selection box, under Save as type, select STEP Format (*.stp).
3. In the File name box, type the name of the file you want to save.
4. Click Options to open the STEP Options dialog box and set the parameters controlling the conversion process as you like.
5. Click the Save button to save the file.

When you save a STEP file, a log file of the conversion is created in the same directory of the file you saved.
