Splitting solid and faces from solids

In the following example you will use the Split Faces command to split the faces of a selected solid at their intersections with a set of other solids. To accomplish the task, load file "SplitFaces.e3".

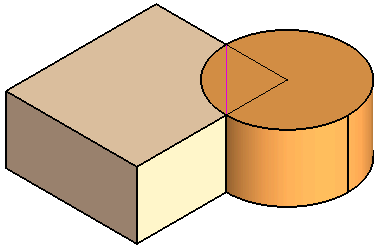

1	Start the Split Faces command and for Solid A select the cuboid. Note To change the solid, you can right-click on the solid, select Reset and select a different solid. To reset the current selection, you can right-click on the graphics area and select Reset current selection.

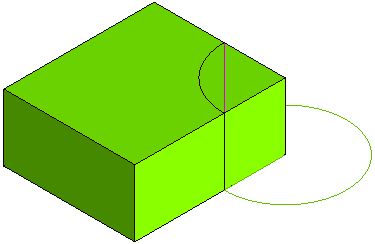

2	For Split with option, you can do the following: a. Select Solids B from the list and select the cylinder. b. Select Curves from the list and select the profile.

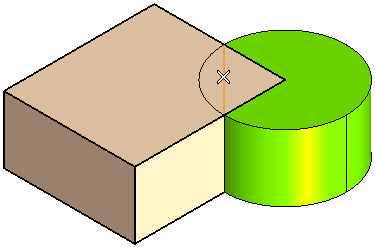

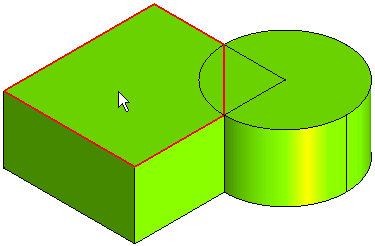

3	Click or to confirm your selections and create the solid. If you have selected a., you can view the following solid: If you have selected b., you can view the following solid: You can notice that only the faces of the solid is split but not the full solid. Click to discard your changes.
