In this example, you are explained about how to project on a plane the points into which a curve has been divided.

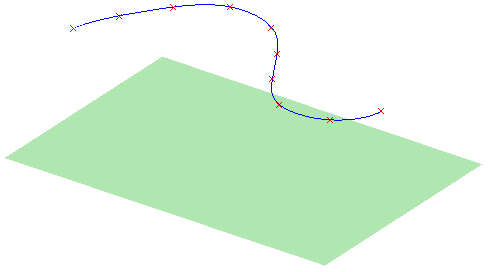

| 1 | Open the file called pt_07_01.e3. In this example, you are explained about how to project on a plane the points into which a curve has been divided. |
|

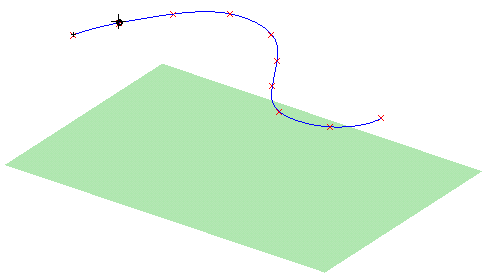

| 2 | To do this, start the Project command and you are asked to select the points you want to project.
|
|
| 3 | End input. | |

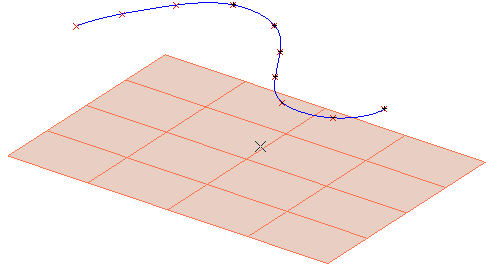

| 4 | Then select the surface onto which you want to project the points selected.
|
|
| 5 | Again, end selection. | |
| 6 | From the Direction drop-down list, you can select one of the three projection methods: Normal to the surface selected or in any other direction which you want to set. | |

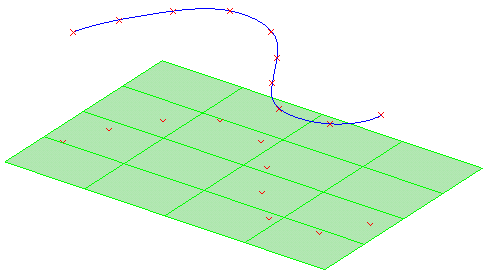

| 7 | If you decide to have a Normal projection, the
projection points are drawn on the surface.
|
