After choosing the curve, the Points option enables you to select the point creation method:

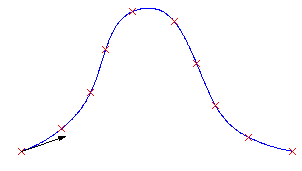

This is the result if you position 10 points on the whole curve.
This is the result if you position 10 points on one section of the curve.
After starting the On Curve command ( On Curve/Surface, if you are working in the 3D-Model environment),proceed as follows.
| 1 | Select the curve on which you want to create the point entities. |
| 2 |
After choosing the curve, the Points option enables you to select the point creation method: |
| 3 | After specifying the number of points, specify the initial and the final positions of the u parameter in the U mini dialog box (remember that the u parameter varies within the range [0,1]). This is the result if you position 10 points on the whole curve. This is the result if you position 10 points on one section of the curve. |
