Modifying a Multi-Broken View

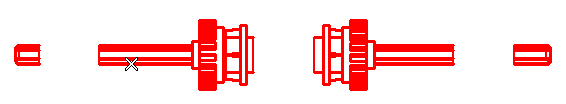

1 When you start the Multibreaks on View command, you are prompted to select a view.



Note that this step is skipped when you have already selected a view and activate Modify Multi-Broken View from the context menu of Drawing Structure or Graphic area.

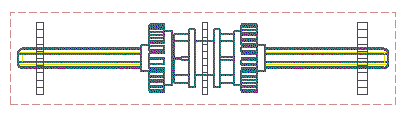

In this case, the selected view is displayed with no breaks (but with the markers corresponding to the existing ones) and it is regenerated.

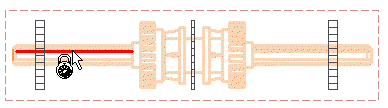

2 Click on the corresponding item to change the definition of the existing breaks.

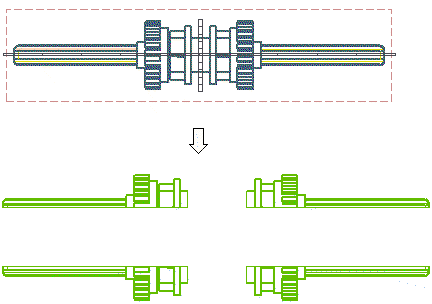

3  Click OK ( ), the breaks will be modified according to your changes — the selected view and all the ones that are derived from it will be regenerated.



If you select Cancel ( ) the original breaks will be restored and only the selected view will be regenerated accordingly.


Note
  • The appearance of the cut line is controlled by the Styles settings on the Break Lines category of the Options/Properties... dialog box.
  • Other factors which affect the appearance of the view, such as the visibility of its view name and the visibility of specific types of entities, are controlled from the various categories under Drawing of the Options/Properties... dialog box.
  • After you create a detailed view, you can change many of these properties from the various categories of the Drawing View.
