Applying a Light Representation

Among the actions you can carry out by the Organize command, you can apply a Light Representation.

Note that you are enabled to apply any Light Representation except the current one.

Proceed as follows.

1 Once you've selected an X-Reference component in Light Representation, perform the Organize command. The Organize Light Representations dialog box is displayed.

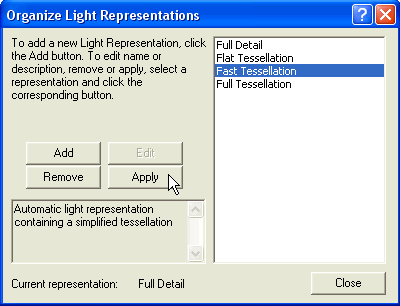

2 You are enabled to apply each Light Representation except the current one. In fact, when you select a Light Representation in the list on the right side, you can notice the Apply button is activated for all the representations but the current one. Select the Light Representation you wish to apply and click the Apply button.

3 The Light Representation you selected is applied to the component. You can proceed with the organization of the Light Representations or close the dialog box and end the command by clicking the Close button.
